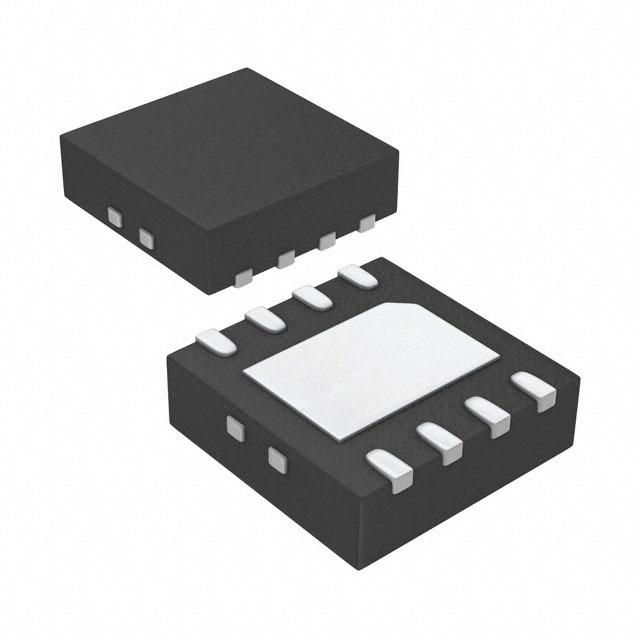

Image is for your reference only,please check specifications for details
- ST8R00WPUR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC57069234
-
Category:DC to DC Converter
-
Package:DFN-8
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 4V to 6V Step Up Single-Out 6V to 12V 1A 8Pin DFN T/R
-
Stock Locations:
-
Availability:58 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.91
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Adjust the voltage level of your devices with this step up ST8R00WPUR DC to DC converter from STMicroelectronics. This converter"s single output can produce a current up to 1 A. Using the part will provide the power your application needs by requiring a voltage only of 4 V and not exceeding a voltage of 6 V. With an adjustable output that has a voltage of 6 to 12 V, this is power management at its best. This converter is 90(typ) % efficient. This part offers a switching frequency of 1400 kHz in order to work properly. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This converter has an operating temperature range of -25 °C to 125 °C.
ST8R00WPUR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | DFN-8 |
| Number of Outputs | 1 Output |
| Output Voltage | 6V ~ 12V |
| Output Current | 1 A |
| Number of Positions | 8 Position |
| Switching Frequency | 1.2 MHz |
| Switching Current | 3 A |
| Input Voltage (Max) | 6 V |
| Input Voltage (Min) | 4 V |
| Output Voltage (Max) | 12 V |
| Output Voltage (Min) | 6 V |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Supply Voltage | 4 V |
| Supply Voltage (Min) | 4 V |
| Input Voltage | 4V ~ 6V |
| Show | |
| Operating Temperature | -25℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
