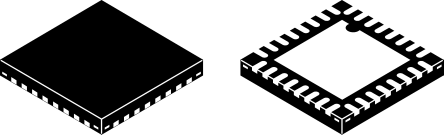

Image is for your reference only,please check specifications for details

STM32F051K6U6 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC3262136
Category:
Microcontroller, MCU IC
Package:
UFQFPN-32
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STM32F051K6U6 32Bit Microcontroller, Access Line, ARM Cortex-M0, 48MHz, 32KB, 4KB, 32Pins, QFN
Stock Locations:
Availability:
9,000 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.85

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STM32F051K6U6 is an entry level STM32 F0 series 32-bit Microcontroller incorporates the high-performance ARM Cortex-M0 RISC core operating at a 48MHz frequency, high speed embedded memories (Flash memory up to 32kB and SRAM up to 8KB) and an extensive range of enhanced peripherals and I/Os. This device offer standard communication interfaces (one I²C, one SPI, one I²S, one HDMI CEC and two USARTs), one 12-bit ADC, one 12-bit DAC, six 16-bit timers, one 32-bit timer and an advanced control PWM timer.
CRC calculation unit
Power-on/Power-down reset (POR/PDR)
Programmable voltage detector (PVD)
Low-power modes - Sleep, stop, standby
VBAT supply for RTC and backup registers
4 to 32MHz Crystal oscillator
32kHz Oscillator for RTC with calibration
Internal 8MHz RC with x6 PLL option
Internal 40kHz RC oscillator
5-channel DMA Controller
Two fast low-power analog comparators with programmable input and output
Up to 18 capacitive sensing channels supporting touchkey, linear and rotary touch sensors
Independent and system watchdog timers
SysTick Timer
Calendar RTC with alarm and periodic wakeup from Stop/Standby
HDMI CEC interface, wakeup on header reception
Serial wire debug (SWD)
96-bit Unique ID

Show

STM32F051K6U6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	UFQFPN-32
Frequency	48 MHz
Supply Voltage (DC)	2.00V (min)
Operating Voltage	2V ~ 3.6V
Number of Positions	32 Position
Clock Speed	48 MHz
RAM Memory Size	4 KB
Number of Bits	32 Bit
Power Dissipation	526 mW
Number of ADCs	1 ADC
Number of Inputs and Outputs	27 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	526 mW
Number of DACs	1 DAC
Supply Voltage	1.8V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	5.1 mm
Size-Width	5.1 mm
Size-Height	0.55 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	3A991A2
