This Power MOSFET is the latest development of STMicroelectronics unique “single feature size” strip-based process. The resulting transistor shows extremely high packing density for low on resistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.
Features
■ Extremely dv/dt capability
■ 100% avalanche tested
■ Application oriented characterization
Application
■ Switching applications

Show

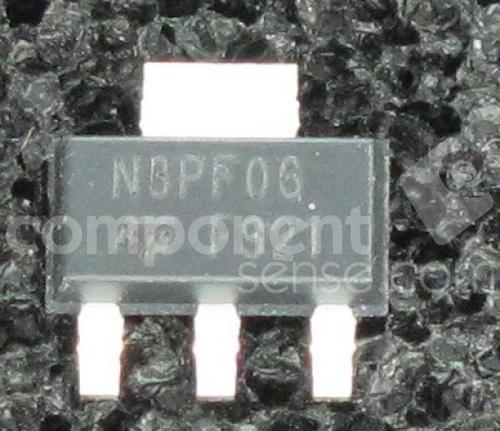

STN3PF06 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-223-3
Voltage Rating (DC)	-60.0 V
Current Rating	-2.50 A
Number of Channels	1 Channel
Number of Positions	4 Position
Drain to Source Resistance (on) (Rds)	200 mΩ
Polarity	P-Channel
Power Dissipation	2.5 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	60 V
Breakdown Voltage (Drain to Source)	60 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	2.50 A
Rise Time	40 ns
Input Capacitance (Ciss)	850pF @25V(Vds)
Input Power (Max)	2.5 W
Fall Time	17 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	65 ℃
Power Dissipation (Max)	2.5W (Tc)
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.8 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
