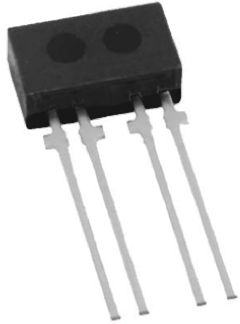

Image is for your reference only,please check specifications for details

TCRT1000 - VISHAY
Manufacturer:
VISHAY
ManyChip's Part#:
MC5471625
Category:
Transistor
Package:
SIP-4
Datasheet:
Datasheet 3D Model
Description:
Reflective Photo Interrupter, Phototransistor, Through Hole, 4mm, 50mA, 5 Vr, 1.25 Vf
Stock Locations:
Availability:
260 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.79

Updated at 23/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TCRT1000 is a Reflective Optical Sensor with straight leads that includes an infrared emitter and phototransistor in a leaded package which blocks visible light.

Show

TCRT1000 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	SIP-4
Voltage Rating (DC)	32.0 V
Output Voltage	32 V
Output Current	100 mA
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.25 V
Wavelength	950 nm
Input Current	50 mA
Power Dissipation	200 mW
Breakdown Voltage (Collector to Emitter)	32 V
Forward Current	50 mA
Reverse Breakdown Voltage	5 V
Forward Current (Max)	50 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	200 mW
	Show
Size-Length	7 mm
Size-Width	2.5 mm
Size-Height	4 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
