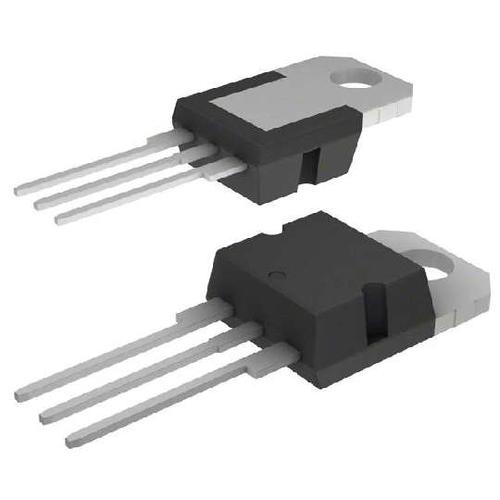

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- P-Channel 60V 10A (Tc) 30W (Tc) Through Hole TO-220
STP10P6F6 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.13 Ω |
| Polarity | P-CH |
| Power Dissipation | 30 W |
| Drain to Source Voltage (Vds) | 60 V |
| Continuous Drain Current (Ids) | 10A |
| Rise Time | 5.3 ns |
| Input Capacitance (Ciss) | 340pF @48V(Vds) |
| Input Power (Max) | 35 W |
| Fall Time | 3.7 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 30W (Tc) |
| Show | |
| Operating Temperature | 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
