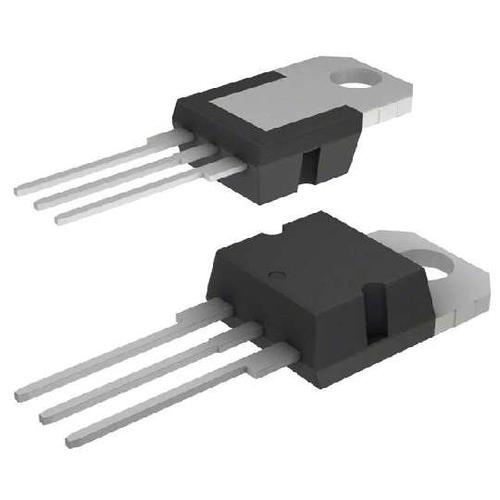

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This STP40N60M2 power MOSFET from STMicroelectronics can not only be used for amplifying electronic signals but also for switching between electronic signals. Its maximum power dissipation is 250000 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device utilizes mdmesh ii technology. This N channel MOSFET transistor operates in enhancement mode. This MOSFET transistor has an operating temperature range of -55 °C to 150 °C.
STP40N60M2 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.078 Ω |
| Polarity | N-CH |
| Power Dissipation | 250 W |
| Threshold Voltage | 3 V |
| Drain to Source Voltage (Vds) | 600 V |
| Continuous Drain Current (Ids) | 34A |
| Rise Time | 13.5 ns |
| Input Capacitance (Ciss) | 2500pF @100V(Vds) |
| Input Power (Max) | 250 W |
| Fall Time | 11 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 250W (Tc) |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
