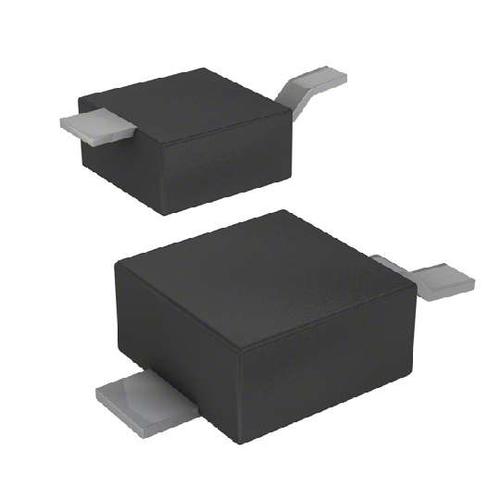

Image is for your reference only,please check specifications for details

STPS1L40M - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC7168613
Category:
Schottky Diode
Package:
DO-216AA
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STPS1L40M Schottky Rectifier, 40V, 1A, Single, DO-216AA, 2Pins, 460mV New
Stock Locations:
Availability:
920 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.18

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STPS1L40M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-216AA
Voltage Rating (DC)	40.0 V
Current Rating	1.00 A
Output Current	≤1.00 A
Number of Positions	2 Position
Forward Voltage	460mV @1A
Polarity	Standard
Forward Current	1 A
Max Forward Surge Current (Ifsm)	50 A
Maximum Forward Voltage (Max)	460 mV
Forward Current (Max)	1 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Height	1 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
