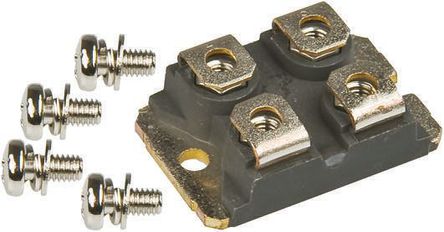

STTH9012TV1 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC23923135
Category:
Power Diode
Package:
ISOTOP
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STTH9012TV1 Diode Module, 1.2kV, 45A, 1.8V, Dual Isolated, STTH9 Series
Stock Locations:
Availability:
307 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 28.81

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH9012TV1 is an Ultrafast Recovery Diode with high reverse voltage capability. The high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy-duty applications that demand long term reliability. The improved performance in low leakage current and therefore thermal runaway guard band, is an immediate competitive advantage for this device.
Very low conduction and switching losses
High frequency and high pulsed current operation
High junction temperature
150A RMS forward current

Show

STTH9012TV1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	ISOTOP
Voltage Rating (DC)	1.20 kV
Forward Voltage	2.1 V
Reverse recovery time	125 ns
Forward Current	45 A
Maximum Forward Voltage (Max)	1.8 V
Forward Current (Max)	90 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Length	38.2 mm
Size-Width	25.5 mm
Size-Height	12.2 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
