Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 3 Pin |

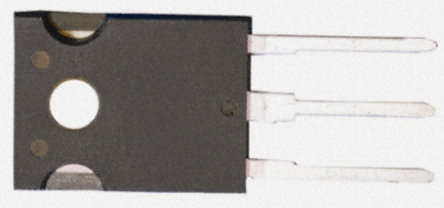

Case/Package | TO-247-3 |
Polarity | N-CH |
Power Dissipation | 160W (Tc) |
Drain to Source Voltage (Vds) | 950 V |
Continuous Drain Current (Ids) | 7A |
Rise Time | 15 ns |
Input Capacitance (Ciss) | 2256pF @25V(Vds) |
Fall Time | 22 ns |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 160W (Tc) |
Show | |
Size-Length | 15.75 mm |
Size-Width | 5.15 mm |
Size-Height | 20.15 mm |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | Compliant with Exemption |
Lead-Free Status |
