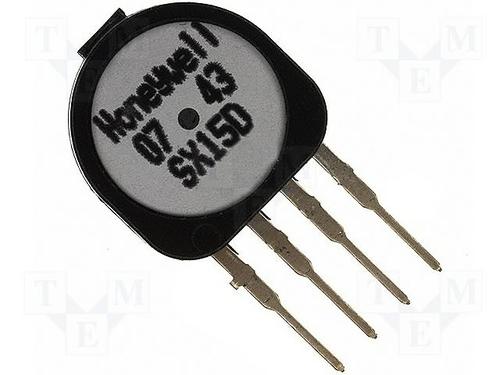

Image is for your reference only,please check specifications for details
Updated at 14/05/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Pressure Sensor 0psi to 15psi Differential/Gage 4-Pin
- Product Highlights
- Low Cost
- High-Impedance Bridge
- Absolute and Differential (Gauge)
- Low Noise
- Low Power Consumption for Battery Power
SX15D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | SIP-4 |
| Supply Voltage (DC) | 12.0 V |
| Voltage Rating (DC) | 12.0 V |
| Output Voltage | 0mV ~ 110mV |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±0.5 % |
| Supply Voltage | 12 V |
| Supply Voltage (Max) | 12 VDC |
| Show | |
| Size-Height | 13.3 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Obsolete |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8542390000 |
| ECCN Code | EAR99 |
