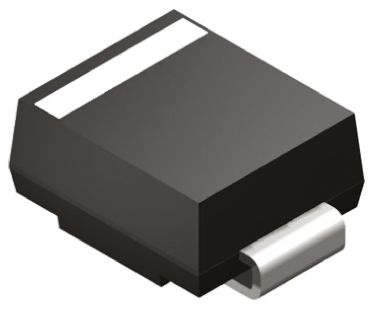

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 53.3V Clamp 11.3A Ipp Tvs Diode Surface Mount SMB
SZ1SMB33CAT3G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DO-214AA |
| Power Dissipation | 600 W |
| Clamping Voltage | 53.3 V |
| Test Current | 1 mA |
| Peak Pulse Power | 600 W |
| Min Breakdown Voltage | 36.7 V |
| Reverse Breakdown Voltage | 36.7 V |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Junction Temperature | -65℃ ~ 150℃ |
| Show | |
| Size-Length | 4.57 mm |
| Size-Width | 3.81 mm |
| Size-Height | 2.41 mm |
| Operating Temperature | -65℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status |
