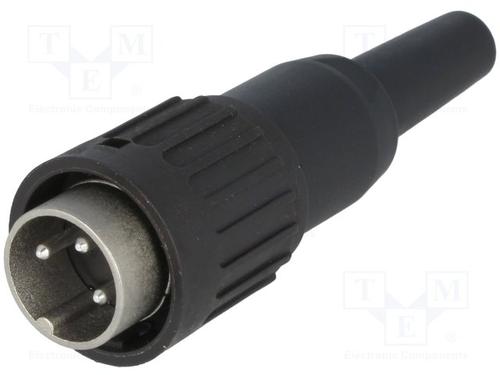

Image is for your reference only,please check specifications for details
- T 3274 501 - Amphenol
-
Manufacturer:Amphenol
-
ManyChip's Part#:MC15625038
-
Category:Circular Connector, Connector Circular
-
Datasheet:Datasheet 3D Model
-
Description:Cable connector, C091B 3Pin [Amphenol] T 3274 501 Cable connector, C091B 3Pin
-
Stock Locations:
-
Availability:170 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.77
Updated at 26/08/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The T 3274 501 is a 3-position Male Cable Connector, C091B series, solder termination and silver-plated contacts. Nickel-plated die-cast housing, thermoplastic dielectric and bayonet locking system. This connector is designed for Ø4 to 6mm cable.
- Internal strain relief
- Good shielding effectiveness when mated and locked
- >10¹°R Insulation resistance
- <5mR Contact resistance
- IP40 Protection rating
- UL94V-0 Flammability rating
T 3274 501 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Solder |
| Number of Pins | 3 Pin |
| Number of Contacts | 3 Contact |
| Gender | Male |
| Contact Plating | Silver |
| Current Rating | 5 A |
| Insulation Resistance | 1012 MΩ |
| Orientation | Straight |
| Number of Positions | 3 Position |
| Contact Resistance | 5 mΩ |
| Number of Mating Cycles | 500 Cycle |
| Current Rating (Max) | 5 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 300 V |
| Show | |
| Size-Length | 67.5 mm |
| Color | Red |
| Contact Material | Silver |
| Insulation Material | Thermoplastic |
| Operating Temperature | -40℃ ~ 100℃ |
| Housing Material | Thermoplastic |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
