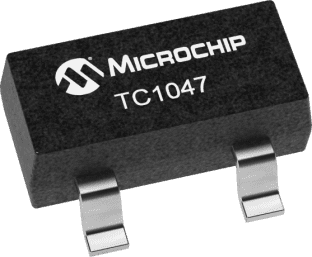

TC1047VNBTR - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC2411830
Category:
Temperature Sensor
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:
MICROCHIP TC1047VNBTR Temperature Sensor IC, Voltage, ± 2℃, -40℃, +125℃, SOT-23, 3Pins
Stock Locations:
Availability:
302 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.72

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TC1047VNBTR is a Precision Temperature-to-voltage Converter for power supply thermal shutdown and temperature controlled fans. The TC1047 is a linear output temperature sensor whose output voltage is directly proportional to measured temperature. The TC1047 can accurately measure temperature from -40 to +125°C. The supply voltage can vary between 2.7 and 4.4V. The output voltage range for these devices is typically 100mV at -40°C, 500mV at 0°C, 750mV at +25°C and 1.75V at +125°C. A 10mV/°C voltage slope output response allows for a predictable temperature measurement over a wide temperature range.
10mV/°C (typical) Linear temperature slope
35µA Typical very low supply current

Show

TC1047VNBTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Supply Voltage (DC)	2.70V (min)
Output Voltage	750 mV
Output Current	100 µA
Supply Current	35.0 µA
Number of Channels	1 Channel
Number of Positions	3 Position
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.5 ℃
Supply Voltage	2.7V ~ 4.4V
Supply Voltage (Max)	4.4 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	3.04 mm
Size-Width	1.4 mm
Size-Height	1.02 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
