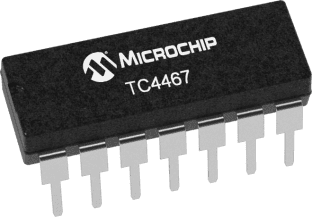

- TC4467CPD - Microchip
-
Manufacturer:Microchip
-
ManyChip's Part#:MC14922375
-
Category:FET Driver
-
Package:PDIP-14
-
Datasheet:Datasheet 3D Model
-
Description:TC4467CPD, Quad MOSFET Power Driver 1.2A, 4.5 to 18V, Inverting, 14Pin PDIP
-
Stock Locations:
-
Availability:216 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.39
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Sleep easy by implementing this TC4467CPD power driver by Microchip Technology. This device has a maximum propagation delay time of 75 ns and a maximum power dissipation of 800 mW. Its maximum power dissipation is 800 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device has a minimum operating supply voltage of 4.5 V and a maximum of 18 V. This gate driver has a minimum operating temperature of 0 °C and a maximum of 70 °C.
TC4467CPD Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | PDIP-14 |
| Supply Voltage (DC) | 4.50V (min) |
| Operating Voltage | 4.5V ~ 18V |
| Rise/Fall Time | 15 ns |
| Number of Outputs | 4 Output |
| Output Current | 1.2 A |
| Supply Current | 4.00 mA |
| Number of Channels | 4 Channel |
| Power Dissipation | 0.8 W |
| Rise Time | 25 ns |
| Fall Time | 25 ns |
| Fall Time (Max) | 25 ns |
| Fall Time (Max) | 25 ns |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 800 mW |
| Supply Voltage | 4.5V ~ 18V |
| Show | |
| Size-Length | 19.05 mm |
| Size-Width | 6.35 mm |
| Size-Height | 3.3 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
