Description

For additional circuit stability, add Microchip Technology"s TCM809MENB713 microprocessor supervisory circuit, which can act as a backup processor in case the original fails, to your circuit. This device has a maximum power dissipation of 320 mW. Its maximum power dissipation is 320 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has a typical reset threshold voltage of 4.38 V, with a minimum of 4.31 V and a maximum of 4.45 V. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C.

Show

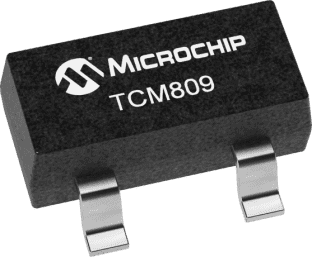

TCM809MENB713 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Supply Voltage (DC)	1.00V (min)
Supply Current	12.0 µA
Power Dissipation	0.32 W
Quiescent Current	12.0 µA
Threshold Voltage	4.38 V
Reset Threshold Voltage (Min)	4.31 V
Reset Threshold Voltage (Max)	4.45 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	320 mW
Supply Voltage	1.2V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.2 V
	Show
Size-Length	3.05 mm
Size-Width	1.4 mm
Size-Height	1.02 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
HTS Code	8542390001
ECCN Code	EAR99
HK STC License	NLR
