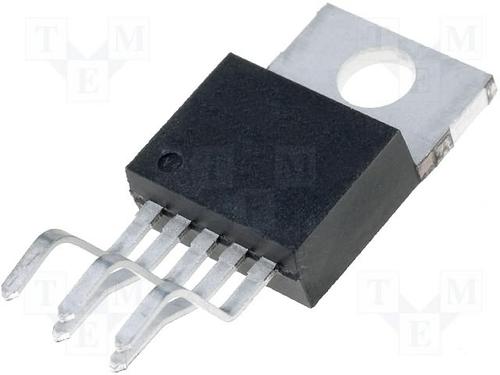

Image is for your reference only,please check specifications for details

TDA2050V - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC65620658
Category:
Audio Amplifier IC
Package:
5-PENTAWATT
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TDA2050V Audio Power Amplifier, AB, 1Channel, 25W, ± 4.5V to ± 25V, Pentawatt V, 5Pins
Stock Locations:
Availability:
1,119 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.79

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

TDA2050V Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	5-PENTAWATT
Supply Voltage (DC)	18.0 V
Power Rating	25 W
Input Voltage (DC)	15.0 V
Output Current	5000 mA
Supply Current	90.0 mA
Number of Circuits	2 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Power Dissipation	25000 mW
Quiescent Current	30.0 mA
Bandwidth	80.0 kHz
Slew Rate	8.00 V/μs
Output Power	25 W
Gain	80 dB
Output Current (Max)	5000 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	25000 mW
	Show
Size-Length	10.4 mm
Size-Width	4.8 mm
Size-Height	9.2 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
