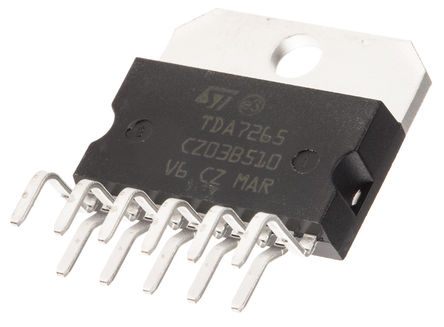

Image is for your reference only,please check specifications for details
- TDA7265 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC75204
-
Category:Audio Amplifier IC
-
Package:Multiwatt-11
-
Datasheet:Datasheet 3D Model
-
Description:Audio Power Amplifier, AB, 2Channel, 25W, ± 5V to ± 25V, Multiwatt, 11Pins
-
Stock Locations:
-
Availability:10,003 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.27
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TDA7265 is a class AB dual audio Power Amplifier IC, specially designed for high quality sound application as Hi-Fi music centres and stereo TV sets.
- Wide Supply Voltage Range (up to +25V ABS Maximum)
- Split Supply
- High Output Power 25 + 25W at THD = 10%, RL= 8R, VS =±20V
- No POP at Turn On/Off
- Mute (POP-free)
- Standby Feature (Low Iq)
- Short-circuit Protection
- Thermal Overload Protection
TDA7265 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 11 Pin |
| Case/Package | Multiwatt-11 |
| Supply Voltage (DC) | 25.0 V |
| Supply Current | 4.50 A |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 11 Position |
| Power Dissipation | 30 W |
| Quiescent Current | 80.0 mA |
| Output Power | 25 W |
| Gain | 80 dB |
| Input Offset Voltage | 20 mV |
| Input Bias Current | 500 nA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Power Dissipation (Max) | 30000 mW |
| Show | |
| Size-Length | 19.6 mm |
| Size-Width | 5 mm |
| Size-Height | 10.7 mm |
| Operating Temperature | -20℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
