Description

General description

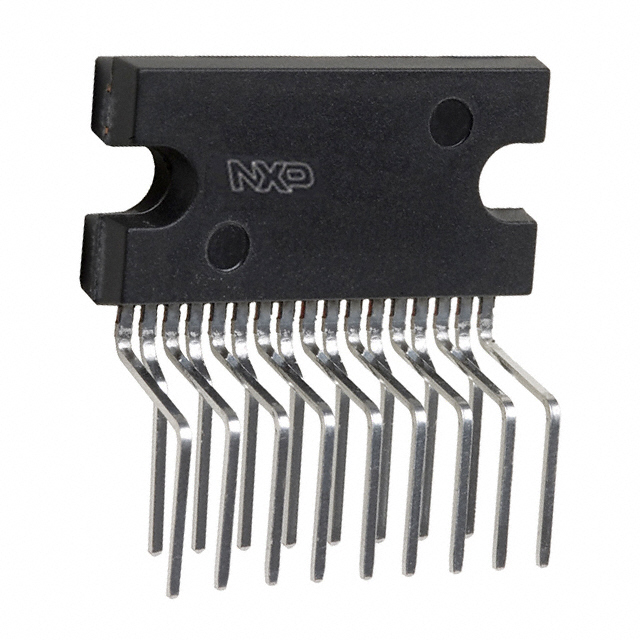

The TDA8944AJ is a dual-channel audio power amplifier with DC gain control. It has an output power of 2×7 W at an 8Ωload and a 12 V supply. The circuit contains two Bridge-Tied Load (BTL) amplifiers with an all-NPN output stage and standby/mute logic. The overall gain can be adjusted from +30 dB down to −50 dB using a DC control voltage. This feature can be used for volume control or a preset gain. The TDA8944AJ comes in a 17-pin DIL-bent-SIL (DBS) power package and is pin compatible with the TDA8944J.
Features
■Gain/volume adjustment via a DC control pin
■Soft clipping
■Operating at a low supply voltage
■Standby and mute mode
■No on/off switching plops
■Low standby current
■High supply voltage ripple rejection
■Outputs short-circuit protected to ground, supply and across the load
■Thermally protected
■Printed-circuit board compatible with TDA8946AJ and TDA8580J.
Applications
■Mains fed applications (e.g. TV sound)
■PC audio
■Portable audio.
