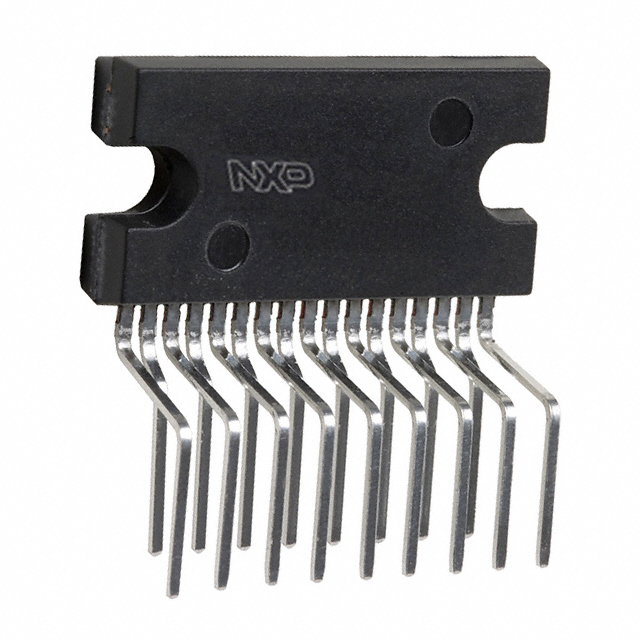

Image is for your reference only,please check specifications for details
Updated at 28/08/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Общее описание
- TDA8944J — это двухканальный усилитель мощности звука с выходной мощностью 2×7 Вт на нагрузке 8 Ом и напряжении питания 12 В. Схема содержит два мостовых усилителя (BTL) с выходным каскадом на NPN-транзисторах и логикой режима ожидания/отключения звука. TDA8944J выпускается в 17-выводном корпусе DIL-bent-SIL (DBS) с мощностным исполнением. TDA8944J совместим по печатной плате (PCB) со всеми другими типами семейства TDA894x.
- Одна посадочная площадка на печатной плате подходит как для моно-, так и для стереоустройств.
- Особенности
- ■Минимальное количество внешних компонентов
- ■Фиксированный коэффициент усиления
- ■Режимы ожидания и отключения звука
- ■Отсутствие щелчков при включении/выключении
- ■Низкий ток в режиме ожидания
- ■Высокое подавление пульсаций напряжения питания
- ■Защита выходов от короткого замыкания на землю, питание и через нагрузку
- ■Термозащита
- ■Совместимость с печатной платой.
- Применение
- ■Устройства с питанием от сети (например, звук в телевизорах)
- ■Аудио для ПК
- ■Портативное аудио.
TDA8944J Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | - |
| Show | |
| Product Lifecycle Status | Unknown |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
