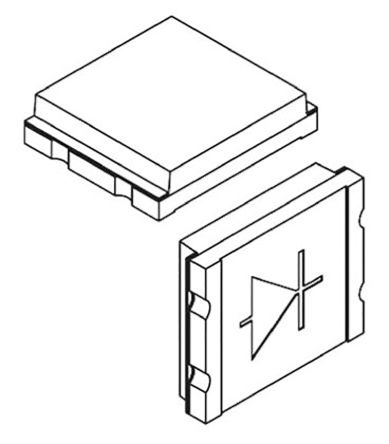

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TEMD5110X01 is a Silicon PIN Photodiode features high speed and high sensitive. It is a miniature surface mount device (SMD) including the chip with a 7.5mm² sensitive area and a daylight blocking filter matched with IR emitters operating at wavelength 870 or 950nm. It is suitable for high speed detector for infrared radiation, infrared remote control and free air data transmission systems, e.g. in combination with TSFFxxxx series IR emitters.
TEMD5110X01 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SMD-4 |
| Rise/Fall Time | 100 ns |
| Number of Positions | 2 Position |
| Forward Voltage | 1.3 V |
| Wavelength | 940 nm |
| Viewing Angle | 130° |
| Peak Wavelength | 940 nm |
| Power Dissipation | 215 mW |
| Rise Time | 100 ns |
| Forward Current | 50 mA |
| Reverse Breakdown Voltage | 60 V |
| Maximum Forward Voltage (Max) | 1.3 V |
| Fall Time | 100 ns |
| Fall Time (Max) | 100 ns |
| Fall Time (Max) | 100 ns |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 215 mW |
| Show | |
| Size-Length | 4.2 mm |
| Size-Width | 5 mm |
| Size-Height | 1.08 mm |
| Operating Temperature | -40℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
