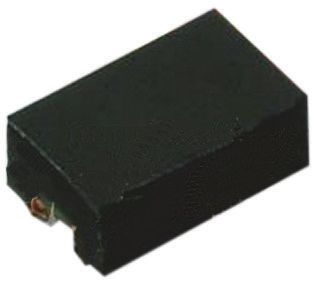

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TEMT7000X01 is a high speed Silicon NPN Epitaxial Planar Phototransistor in a miniature 0805 package for surface mounting on printed boards. The device is sensitive to visible and near infrared radiation.
- Surface mount 0805 package
- AEC-Q101 qualified
- High photo sensitivity
- High radiant sensitivity
- Suitable for visible and near infrared radiation
- Fast response time
- ϕ = ±60° Angle of half sensitivity
- Package matched with IR emitter series VSMB1940X01
- 168h Floor life, MSL 3, according to J-STD-020
- Lead (Pb)-free reflow soldering
TEMT7000X01 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 2012 |
| Case/Package | SMD |
| Power Rating | 0.1 W |
| Number of Channels | 1 Channel |
| Number of Positions | 2 Position |
| Wavelength | 850 nm |
| Viewing Angle | 60° |
| Peak Wavelength | 850 nm |
| Polarity | NPN |
| Power Dissipation | 0.1 W |
| Power Consumption | 100 mW |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 100 mW |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.25 mm |
| Size-Height | 0.85 mm |
| Material | Silicon |
| Operating Temperature | -40℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
