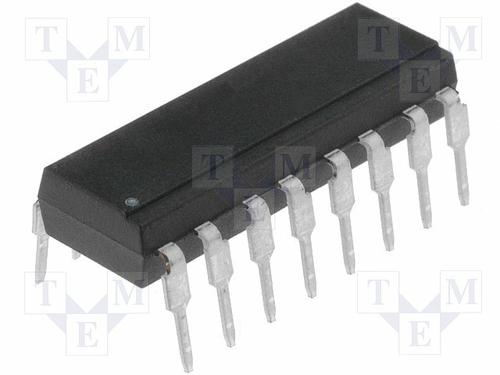

TIL193 - ISOCOM Components
Manufacturer:
ISOCOM Components
ManyChip's Part#:
MC36935496
Category:
Optocoupler, Optoisolator
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
ISOCOM TIL193 Optocoupler, Transistor Output, 4Channel, DIP, 16Pins, 50mA, 5.3kV, 20%
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TIL193 is a 3-channel 16-pin high density phototransistor Optically Coupled Isolator consists of an infrared LED and a NPN silicon photo transistor.

Show

TIL193 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP
Output Voltage	35.0 V
Number of Channels	4 Channel
Number of Positions	16 Position
Forward Voltage	1.4 V
Input Current	20 mA
Power Dissipation	0.2 W
Rise Time	6 µs
Isolation Voltage	5.3 kV
Forward Current	50 mA
Reverse Breakdown Voltage	5 V
Maximum Forward Voltage (Max)	1.4 V
Forward Current (Max)	50 mA
Fall Time	6 µs
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
	Show
Operating Temperature	-55℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
