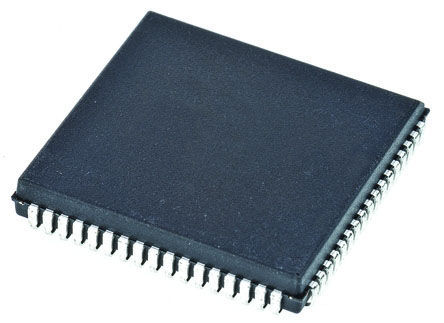

- TL16C554FN - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC8531604
-
Category:UART Chip, UART Interface IC
-
Package:PLCC-68
-
Datasheet:Datasheet 3D Model
-
Description:UART 4CH 16Byte FIFO 5V 68Pin PLCC Tube UART 4CH 16Byte FIFO 5V 68Pin PLCC Tube
-
Stock Locations:
-
Availability:260 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.83
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TL16C554FN is an Asynchronous Communications Element features that each channel performs serial-to-parallel conversion on data characters received from peripheral devices or modems and parallel-to-serial conversion on data characters transmitted by the CPU. The complete status of each channel of the quadruple ACE can be read at any time during functional operation by the CPU. The information obtained includes the type and condition of the operation performed and any error conditions encountered. The quadruple ACE can be placed in an alternate FIFO mode, which activates the internal FIFOs to allow 16 bytes (plus three bits of error data per byte in the receiver FIFO) to be stored in both receive and transmit modes. To minimize system overhead and maximize system efficiency, all logic is on the chip. Two terminal functions allow signalling of direct memory access (DMA) transfers.
- False start bit detection
- Complete status reporting capabilities
- Line break detection and generation
- Loopback controls for communications link fault isolation
- Break, parity, overrun and framing-error simulation
- Fully prioritized interrupt system controls
- 3-state Outputs provide TTL drive capabilities for bidirectional data bus and control bus
- Consists of four improved TL16C550 ACEs plus steering logic
- Adds or deletes standard asynchronous communication bits to or from the serial-data stream
- Up to 16-MHz clock rate for up to 1-Mbaud operation
- Green product and no Sb/Br
TL16C554FN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 68 Pin |
| Case/Package | PLCC-68 |
| Supply Voltage (DC) | 4.75V (min) |
| Voltage Rating (DC) | 5.00 V |
| Operating Voltage | 5.00 V |
| Supply Current | 50 mA |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 68 Position |
| Clock Speed | 8 MHz |
| Power Dissipation | 500 mW |
| Data Rate | 1.00 Mbps |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 500 mW |
| Supply Voltage | 4.75V ~ 5.25V |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Size-Length | 24.23 mm |
| Size-Width | 24.23 mm |
| Size-Height | 4.06 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
