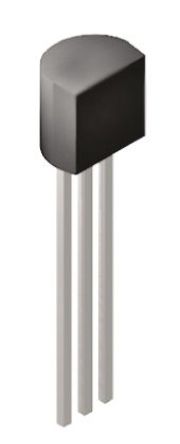

Image is for your reference only,please check specifications for details

TL430CLP - TI
Manufacturer:
TI
ManyChip's Part#:
MC17253418
Category:
Voltage Reference
Package:
TO-92-3
Datasheet:
Datasheet 3D Model
Description:
Shunt Voltage Reference Adjustable Shunt Regulator V-Ref Adjustable 2.75V to 30V 100mA 3Pin TO-92 Bulk
Stock Locations:
Availability:
216 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.66

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

description
The TL430 is a 3-terminal adjustable shunt regulator, featuring excellent temperature stability, wide operating current range, and low output noise. The output voltage can be set by two external resistors to any desired value between 3 V and 30 V. The TL430 can replace Zener diodes in many applications, providing improved performance.
The TL430C is characterized for operation from 0°C to 70°C.
Temperature Compensated
Programmable Output Voltage
Low Output Resistance
Low Output Noise
Sink Capability up to 100 mA

Show

TL430CLP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Current Rating	150 mA
Capacitance Tolerance	±9.09 %
Input Voltage (DC)	3.00V (max)
Output Voltage	2.75V ~ 30V
Output Current	100 mA
Number of Channels	1 Channel
Number of Positions	3 Position
Input Voltage (Max)	30 V
Output Voltage (Max)	30 V
Output Voltage (Min)	2.75 V
Output Current (Max)	100 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Accuracy	±5 %
Input Voltage	30 V
	Show
Size-Length	4.83 mm
Size-Width	3.43 mm
Size-Height	3.68 mm
Operating Temperature	0℃ ~ 70℃
Temperature Coefficient	±120 ppm/℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
