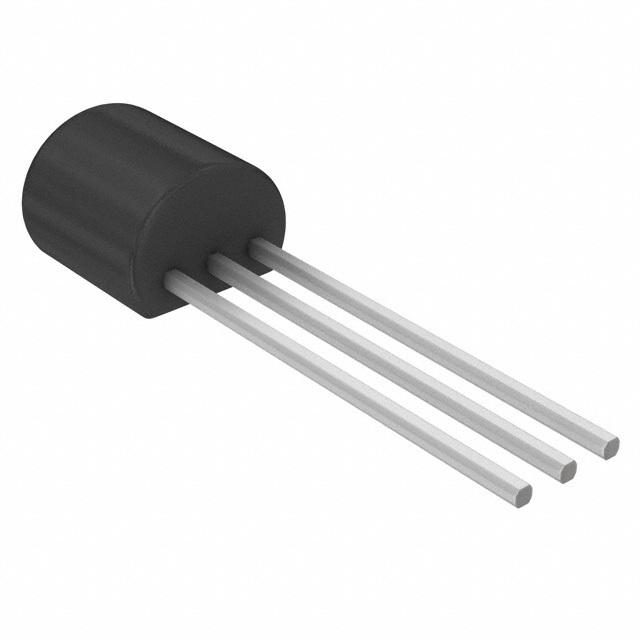

Image is for your reference only,please check specifications for details
- TL431ACZT - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC17650972
-
Category:Voltage Reference
-
Package:TO-226-2
-
Datasheet:Datasheet 3D Model
-
Description:Shunt Voltage Reference IC 36V ±1% 100mA TO-226-2, TO-92-2 (TO-226AC)
-
Stock Locations:
-
Availability:9,487 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.68
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The TL431 is a programmable shunt voltage reference with guaranteed temperature stability over the entire operating temperature range.
- The output voltage may be set to any value between 2.5 V and 36 V with two external resistors.
- The TL431 operates with a wide current range from 1 to 100 mA with a typical dynamic impedance of 0.22 Ω.
- Features
- ■ Adjustable output voltage: 2.5 to 36 V
- ■ Sink current capability: 1 to 100 mA
- ■ Typical output impedance: 0.22Ω
- ■ 1% and 2% voltage precision
TL431ACZT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-226-2 |
| Supply Voltage (DC) | 36.0V (max) |
| Capacitance Tolerance | ±1 % |
| Input Voltage (DC) | 2.52 V |
| Output Voltage | 2.495V ~ 36V |
| Output Current | 100 mA |
| Supply Current | 100 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 3 Position |
| Input Voltage (Max) | 37 V |
| Output Voltage (Max) | 36 V |
| Output Voltage (Min) | 2.495 V |
| Output Current (Max) | 100 mA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Accuracy | 1 % |
| Input Voltage | 2.495V ~ 36V |
| Show | |
| Operating Temperature | 0℃ ~ 70℃ (TA) |
| Temperature Coefficient | ±100 ppm/℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
