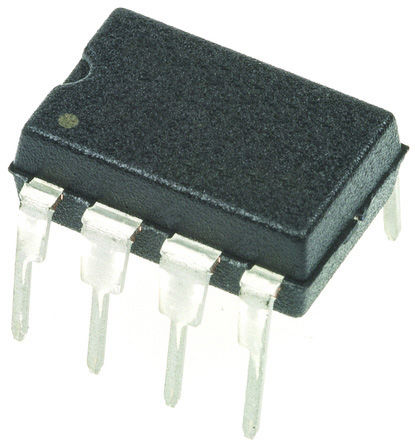

Image is for your reference only,please check specifications for details

TLC081CP - TI
Manufacturer:
TI
ManyChip's Part#:
MC67372536
Category:
Operational Amplifier, OP Amp IC
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLC081CP Operational Amplifier, Single, 1 Amplifier, 10MHz, 16V/µs, ± 2.25V to ± 8V, DIP, 8Pins
Stock Locations:
Availability:
271 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.56

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

description
The first members of TI’s new BiMOS general-purpose operational amplifier family are the TLC08x. The BiMOS family concept is simple: provide an upgrade path for BiFET users who are moving away from dual-supply to single-supply systems and demand higher ac and dc performance. With performance rated from 4.5 V to 16 V across commercial (0°C to 70°C) and an extended industrial temperature range (−40°C to 125°C), BiMOS suits a wide range of audio, automotive, industrial, and instrumentation applications. Familiar features like offset nulling pins, and new features like MSOP PowerPAD packages and shutdown modes, enable higher levels of performance in a variety of applications.
Wide Bandwidth . . . 10 MHz
High Output Drive
− IOH . . . 57 mA at VDD − 1.5 V
− IOL . . . 55 mA at 0.5 V
High Slew Rate
− SR+ . . . 16 V/µs
− SR− . . . 19 V/µs
Wide Supply Range . . . 4.5 V to 16 V
Supply Current . . . 1.9 mA/Channel
Ultralow Power Shutdown Mode
IDD . . . 125 µA/Channel
Low Input Noise Voltage . . . 8.5 nV√Hz
Input Offset Voltage . . . 60 µV
Ultra-Small Packages
− 8 or 10 Pin MSOP (TLC080/1/2/3)

Show

TLC081CP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Output Current	57mA @5V
Supply Current	1.9 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Power Dissipation	1.2 W
Common Mode Rejection Ratio	80 dB
Input Offset Drift	1.20 µV/K
Bandwidth	10 MHz
Slew Rate	16.0 V/μs
Gain Bandwidth Product	10 MHz
Input Offset Voltage	390 µV
Input Bias Current	2 pA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	10 MHz
Power Dissipation (Max)	1200 mW
Minimum CMRR Range	80 dB
Supply Voltage	4.5V ~ 16V
Supply Voltage (Max)	16 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	10.16 mm
Size-Width	6.6 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
