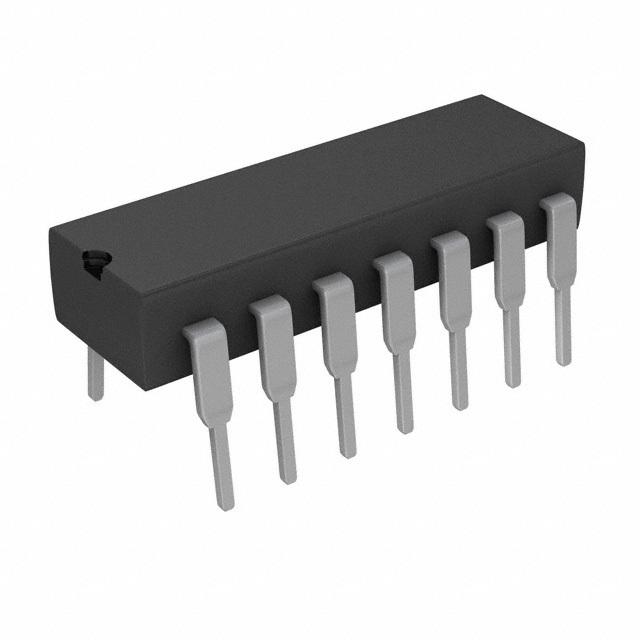

TLC27L4ACN - TI
Manufacturer:
TI
ManyChip's Part#:
MC32148536
Category:
Operational Amplifier, OP Amp IC
Package:
DIP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLC27L4ACN Operational Amplifier, 4 Amplifier, 110kHz, 0.05V/µs, 3V to 16V, DIP, 14Pins
Stock Locations:
Availability:
223 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.58

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

description
The TLC27L4 and TLC27L9 quad operational amplifiers combine a wide range of input offset voltage grades with low offset voltage drift, high input impedance, extremely low power, and high gain.
Trimmed Offset Voltage:
TLC27L9. . . 900 µV Max at 25°C, VDD= 5 V
Input Offset Voltage Drift...Typically
0.1 µV/Month, Including the First 30 Days
Wide Range of Supply Voltages Over Specified Temperature Range:
0°C to 70°C...3 V to 16 V
–40°C to 85°C...4 V to 16 V
–55°C to 125°C...4 V to 16 V
Single-Supply Operation
Common-Mode Input Voltage Range Extends Below the Negative Rail (C-Suffix, I-Suffix Types)
Ultra-Low Power...Typically 195 µW at 25°C, VDD= 5 V
Output Voltage Range includes Negative Rail
High Input Impedance...1012 Ω Typ
ESD-Protection Circuitry
Small-Outline Package Option Also Available in Tape and Reel
Designed-In Latch-Up Immunity

Show

TLC27L4ACN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Output Current	≤30 mA
Supply Current	57 µA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Power Dissipation	1575 mW
Common Mode Rejection Ratio	65 dB
Input Offset Drift	1.10 µV/K
Bandwidth	110 kHz
Slew Rate	30.0 mV/μs
Gain Bandwidth Product	110 kHz
Input Offset Voltage	900 µV
Input Bias Current	0.7 pA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	0.085 MHz
Power Dissipation (Max)	1575 mW
Minimum CMRR Range	65 dB
Supply Voltage	3V ~ 16V
Supply Voltage (Max)	16 V
Supply Voltage (Min)	3 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
