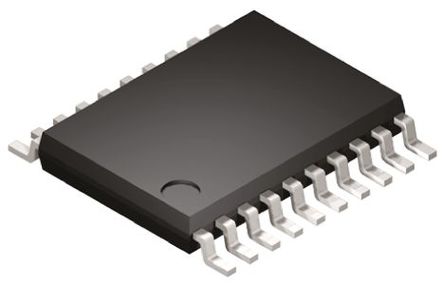

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

description
The TLC3544 and TLC3548 are a family of 14-bit resolution high-performance, low-power, CMOS analog-to-digital converters (ADC). All devices operate from a single 5-V analog power supply and 3-V to 5-V digital supply. The serial interface consists of four digital inputs [chip select (CS), frame sync (FS), serial input-output clock (SCLK), serial data input (SDI)], and a 3-state serial data output (SDO). CS(works as SS, slave select), SDI, SDO, and SCLK form an SPI interface. FS, SDI, SDO, and SCLK form a DSP interface.
14-Bit Resolution
Maximum Throughput 200 KSPS
Analog Input Range 0-V to Reference Voltage
Multiple Analog Inputs:
– 8 Channels for TLC3548
– 4 Channels for TLC3544
Pseudodifferential Analog Inputs
SPI/DSP-Compatible Serial Interfaces With SCLK up to 25 MHz
Single 5-V Analog Supply; 3-/5-V Digital Supply
Low Power:
– 4 mA (Internal Reference: 1.8 mA) for Normal Operation
– 20 µA in Autopower-Down
Built-In 4-V Reference, Conversion Clock and 8x FIFO
Hardware-Controlled and Programmable Sampling Period
Programmable Autochannel Sweep and Repeat
Hardware Default Configuration
NL: ±1 LSB Max
DNL: ±1 LSB Max
SINAD: 80.8 dB
THD: –95 dB

Show

TLC3544IPW Specifications
