TLC549CP - TI
Manufacturer:
TI
ManyChip's Part#:
MC9748164
Category:
Analog to Digital, ADC IC
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:

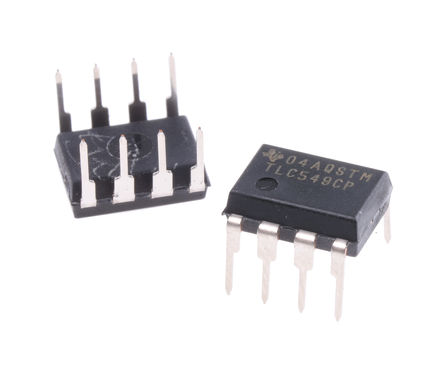

TEXAS INSTRUMENTS TLC549CP Analogue to Digital Converter, 8Bit, 40KSPS, Single, 3V, 6V, DIP
Stock Locations:
Availability:
2,730 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.31

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLC549CP is a 8-bit 40kSPS Analogue-to-Digital Converter with serial output, compatible to TLC540/545/1540 single channel. Designed for serial interface with a microprocessor or peripheral through a 3-state data output and an analogue input. The TLC549 use only the input/output clock (I/O CLOCK) input along with the chip select (CS\\) input for data control. The maximum I/O CLOCK input frequency of the TLC548 is 2.048MHz and the I/O CLOCK input frequency of the TLC549 is specified up to 1.1MHz.
Microprocessor peripheral or standalone operation
Differential reference input voltages
17us Maximum conversion time
On-chip software-controllable sample-and-hold function
±0.5LSB Maximum total unadjusted error
4MHz Typical internal system clock
Low power consumption

Show

TLC549CP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Digital Logic Level	SAR
Supply Voltage (DC)	3.00V (min)
Operating Voltage	3V ~ 6V
Supply Current	1.80 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Number of Bits	8 Bit
Power Dissipation	15 mW
Sample Rate	40 ksps
Power Consumption	9 mW
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Number of Input Channels	1 Channel
Supply Voltage (Max)	6 V
Supply Voltage (Min)	3 V
Input Voltage	5 V
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
