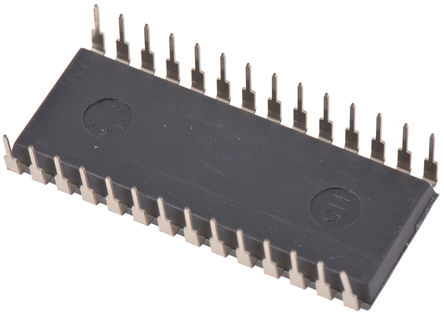

Image is for your reference only,please check specifications for details

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLC7135CN is a 4-1/2-digit dual-slope-integrating Analog-to-digital Converter (ADC) designed to provide interfaces to both a microprocessor and a visual display. The digit-drive outputs D1 through D4 and multiplexed binary-coded-decimal outputs B1/B2/B4/B8 provide an interface for LED or LCD decoder/drivers as well as microprocessors. It offers 50ppm resolution with a maximum linearity error of one count. The zero error is less than 10µV and zero drift is less than 0.5µV/°C. Source-impedance errors are minimized by low input current. Rollover error is limited to ±l;1 count. The BUSY, STROBE\, RUN/HOLD\, OVER RANGE and UNDER RANGE control signals support microprocessor-based measurement systems. The control signals also can support remote data acquisition systems with data transfer through universal asynchronous receiver transmitters (UARTs).
Zero reading for 0V input
Precision null detection with true polarity at zero
True differential input
Multiplexed binary-coded-decimal output
Control signals allow interfacing with UARTs or microprocessors
Auto ranging capability with over and under-range signals
TTL-compatible outputs
Green product and no Sb/Br

Show

TLC7135CN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	PDIP-28
Supply Voltage (DC)	4.00V (min)
Operating Voltage	4V ~ 6V
Output Voltage	5.00 V
Supply Current	1 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	28 Position
Number of Bits	14 Bit
Power Dissipation	5 mW
Power Consumption	5.00 mW
Number of ADCs	1 ADC
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Number of Input Channels	1 Channel
Supply Voltage	4V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	4 V
	Show
Size-Length	36.32 mm
Size-Width	13.71 mm
Size-Height	5.08 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
