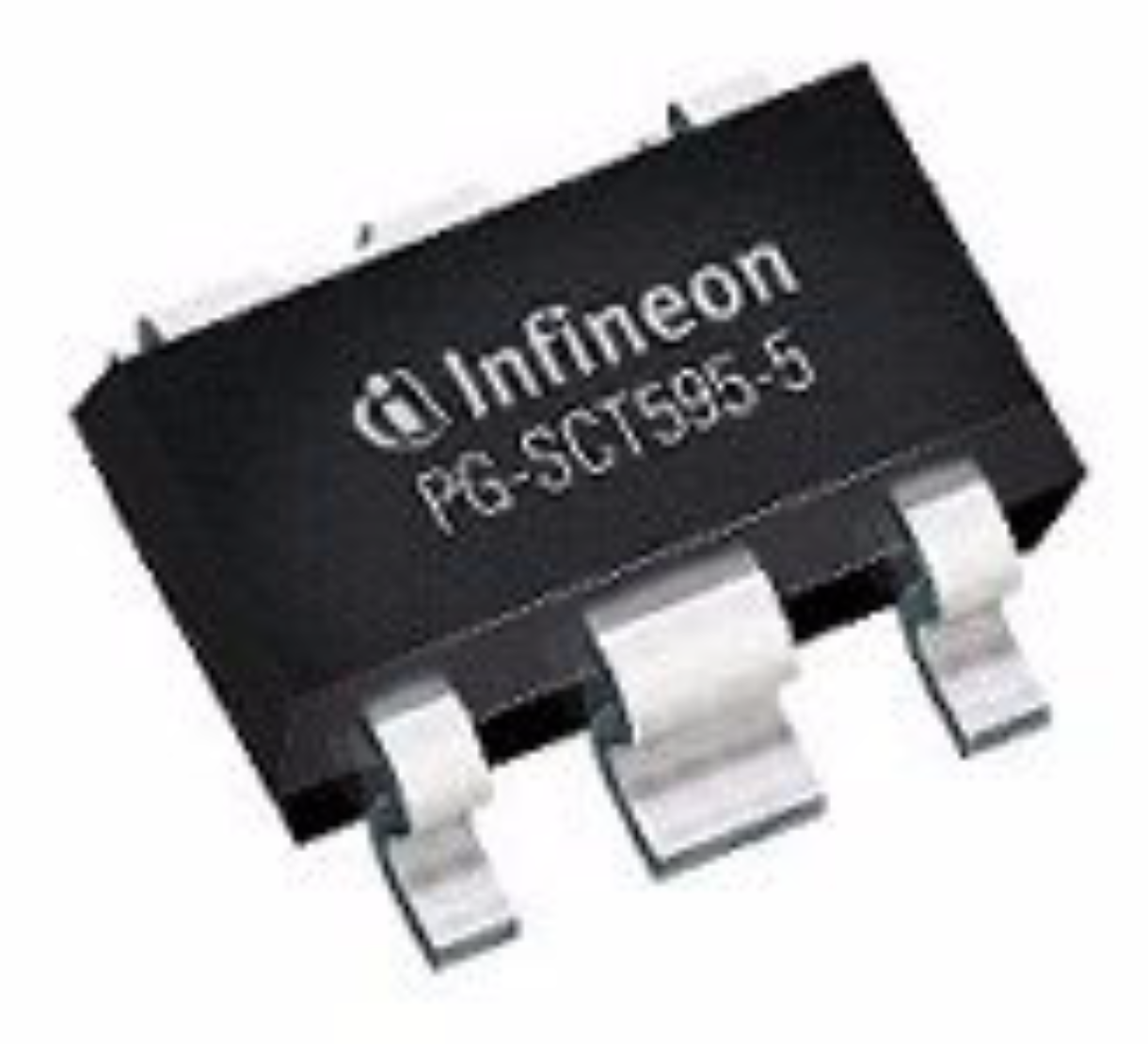

Image is for your reference only,please check specifications for details
- TLE42502GHTSA1 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC47295190
-
Category:Voltage Regulator
-
Package:SCT-595-5
-
Datasheet:Datasheet 3D Model
-
Description:LDO Voltage Regulator, Adjustable, 4V to 40V in, 100mV drop, 2.5V to 40V/50mA out, SMD-5
-
Stock Locations:
-
Availability:3,295 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.41
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TLE4250-2G is a monolithic integrated low dropout Voltage Tracking Regulator with excellent thermal resistance. It is designed to supply off-board loads in automotive environment. The IC protects itself in case of overload, over-temperature, reverse polarity as well as output short-circuit to battery and ground. The output Q is able to drive loads up to 50mA and in order to reduce the quiescent current to a minimum, the regulator can be switched to stand-by mode by setting the adjust/enable input ADJ/EN to low.
- Low output tracking tolerance
- Stable with small ceramic output capacitor
- Combined reference/enable input
- Reverse polarity protection
- Output short-circuit proof to ground and supply
- Over-temperature protection
- Efficient and accurate voltage replication
- Heat distribution in the system
- Robust tracking supply
TLE42502GHTSA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SCT-595-5 |
| Number of Outputs | 1 Output |
| Output Current | 50 mA |
| Number of Positions | 5 Position |
| Quiescent Current | 200 µA |
| voltage rating | 100 mV |
| Input Voltage (Max) | 40 V |
| Input Voltage (Min) | 4 V |
| Output Voltage (Max) | 40 V |
| Output Voltage (Min) | 2.5 V |
| Output Current (Max) | 0.05 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±5 % |
| Input Voltage | 4V ~ 40V |
| Show | |
| Size-Length | 2.9 mm |
| Size-Width | 1.6 mm |
| Size-Height | 1.1 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
