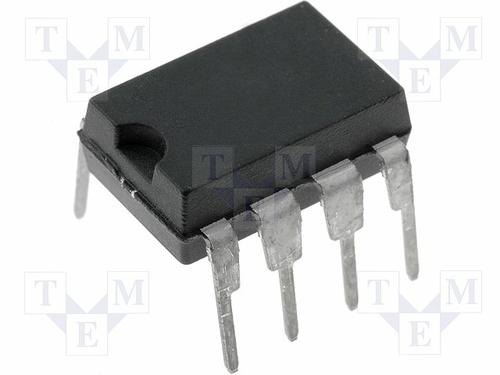

Image is for your reference only,please check specifications for details

LM6171BIN - TI
Manufacturer:
TI
ManyChip's Part#:
MC41654989
Category:
Amplifier, Buffer IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LM6171BIN Operational Amplifier, Single, 1 Amplifier, 100MHz, 3600V/µs, 5.5V to 34V, DIP, 8Pins
Stock Locations:
Availability:
990 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.86

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

LM6171BIN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Voltage (DC)	15.0 V
Operating Voltage	5.5V ~ 34V
Output Current	135 mA
Supply Current	2.5 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Bandwidth	100 MHz
Slew Rate	3.60 kV/μs
Gain Bandwidth Product	100 MHz
Input Offset Voltage	1.5 mV
Input Bias Current	1 µA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	160 MHz
Gain Bandwidth	70 MHz
Supply Voltage	5.5V ~ 34V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
