Description

Low Drop Voltage Tracker
Functional Description

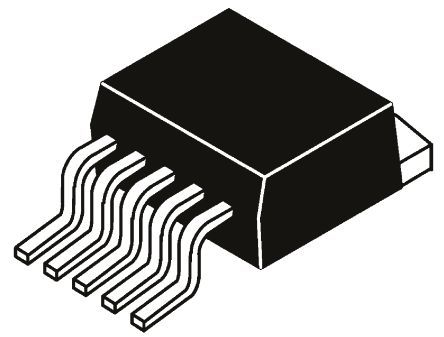

TheTLE 4251is a monolithic integrated low-drop voltage tracker in the very small SMD
package P-TO252-5-1. It is designed to supply e.g. sensors under the severe conditions
of automotive applications. Therefore the device is equipped with additional protection
functions against over load, short circuit and reverse polarity.
Supply voltages up to 40 V are tracked to a reference voltage given to the adjust input
via an external resistor. The output is able to drive loads up to 400 mA while it follows e.g. the 5 V output of a main voltage regulator within an accuracy of 0.5%. For loads up to 300 mA the tracking accuracy is 0.2%.
TheTLE 4251can be switched in stand-by mode via the enable EN input which causes the current consumption to drop to very low values. This feature makes the IC suitable for low power battery applications.
Features
• Output tracking tolerance≤ ±0.2%
• 400 mA output current capability
• Enable Function
• Very low current consumption in OFF mode
• Wide operation range: up to 40 V
• Wide temperature range: – 40°C≤Tj ≤ 150°C
• Output protected against short circuit
• Overtemperature protection
• Reverse polarity proof
