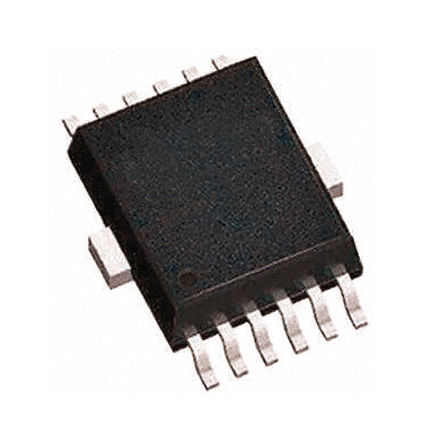

Image is for your reference only,please check specifications for details

TLE4997E2 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC42021203
Category:
Hall Effect Sensor
Package:
SSO-3-10
Datasheet:
Datasheet 3D Model
Description:
INFINEON TLE4997E2 Hall Effect Sensor, Linear, Ratiometric, 1mA, SSO, 3Pins, 4.5V, 5.5V
Stock Locations:
Availability:
269 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.65

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLE4997E2 is a Linear Hall Effect Sensor designed specifically to meet the demands of highly accurate rotation and position detection, as well as for current measurement applications. The sensor provides a ratiometric analogue output voltage, which is ideally suited to Analogue-to-Digital (A/D) conversion with the supply voltage as a reference. The IC is produced in BiCMOS technology with high voltage capability and also provides reverse polarity protection. Digital signal processing using a 16-bit DSP architecture and digital temperature compensation guarantees excellent stability over a long period of time. The minimum overall resolution is 12bits. Some internal stages work with resolutions up to 20bits.The chopped Hall-effect cell and continuous-time A to D conversion provide very low and stable magnetic offset.
Magnetic flux is measured by a hall effect cell
Programmable low-pass filter reduces the noise
Temperature is measured and A to D converted
Digital processing of output voltage is based on zero field and sensitivity value
Output voltage range can be clamped by digital limiters
Final output value is D to A converted
Output voltage is proportional to the supply voltage (ratiometric DAC)
On-board-diagnostics (OBD) circuit connects the output to VDD or GND in case of errors

Show

TLE4997E2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	SSO-3-10
Supply Voltage (DC)	4.50V (min)
Output Current	1 mA
Supply Current	7.5 mA
Number of Positions	3 Position
Bandwidth	3.2 kHz
Output Current (Max)	1 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	4.06 mm
Size-Width	1.5 mm
Size-Height	4.05 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
