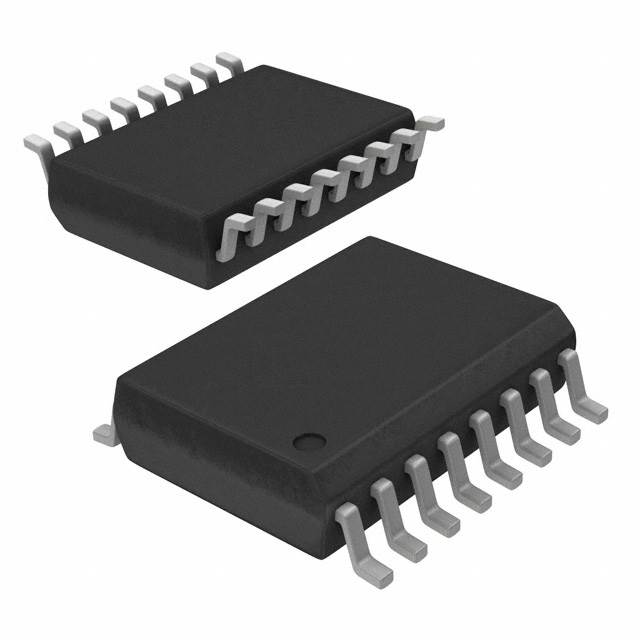

Image is for your reference only,please check specifications for details
- ISO7731DWR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC9309764
-
Category:Interface Isolator, Digital Isolator
-
Package:SOIC-16
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS ISO7731DWR Digital Isolator, 5kV, 3Channel, 11ns, 2.25V, 5.5V, WSOIC, 16Pins New
-
Stock Locations:
-
Availability:280 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.2
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ISO7731DWR from Texas Instruments is a high speed, robust EMC reinforced triple-channel digital isolator in 16 pin SOIC package. It provides high electromagnetic immunity and low emissions at low power consumption while isolating CMOS or LVCMOS digital I/Os. Each isolation channel has a logic input and output buffer separated by a silicon dioxide (SiO2) insulation barrier. It comes with enable pins which can be used to put the respective outputs in high impedance for multi-master driving applications and to reduce power consumption. Used in conjunction with isolated power supplies, it helps prevent noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. The reinforced insulation per DIN V VDE V 0884-10 (VDE V 0884-10):2006-12, 5000 VRMS (DW) isolation rating per UL 1577, CSA component acceptance notice 5A, IEC 60950-1, IEC 60601-1 and IEC 61010-1 end equipment standards safety and regulatory approvals.
- Wide supply range from 2.25V to 5.5V, 2.25V to 5.5V level translation
- Wide temperature range from -55°C to +125°C
- Low power consumption of 1.5mA per channel at 1Mbps
- Low propagation delay is 11ns typical (5V supplies)
- High CMTI is ±100KV/µs typical, system-level ESD, EFT and surge immunity
- Robust electromagnetic compatibility (EMC), low emissions
- VDE, UL and TUV certification
- Isolation barrier life is >40years, two channel in forward and one channel reverse direction
- TUV certification according to EN 60950-1 and EN 61010-1 approvals
- CQC certification per GB4943.1-2011 approvals
- IC can be damaged by ESD, should be handled with appropriate precautions.
ISO7731DWR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Rise/Fall Time | 1.3ns, 1.4ns |
| Number of Channels | 3 Channel |
| Number of Positions | 16 Position |
| Power Dissipation | 150 mW |
| Isolation Voltage | 5000 Vrms |
| Fall Time (Max) | 3.9 ns |
| Fall Time (Max) | 3.9 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 150 mW |
| Supply Voltage | 2.25V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.25 V |
| Show | |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2016/06/20 |
| ECCN Code | EAR99 |
