Description
- The TLE5206-2S is an integrated power H-bridge IC with DMOS output stages for driving DC motors. The part is built using the Infineon multi-technology process SPT® which allows bipolar and CMOS control circuitry plus DMOS power devices to exist on the same monolithic structure. Operation modes forward (cw), reverse (ccw), brake and high impedance are invoked from just two control pins with TTL/CMOS compatible levels. The combination of a low R DS ON and the use of a power IC package with low thermal resistance and high thermal capacity helps to minimize system power dissipation. A blocking capacitor at the supply voltage is the only external circuitry due to the integrated freewheeling diodes.
- Delivers up to 5A Continuous and 6A Peak Current
- Optimized for DC Motor Management Applications
- Very Low R DS ON, Typical 200mR at 25°C per Switch
- Output Full Short-circuit Protected
- Over-temperature Protection with Hysteresis and Diagnosis
- Short-circuit Diagnosis with Open Drain Error Flag
- Under-voltage Lockout
- CMOS/TTL Compatible Inputs with Hysteresis
- No Crossover Current
- Internal Freewheeling Diodes
- Green Product
- AEC Qualified
- Basic monolithic H-bridge saves board area, supports easy control via direct inputs
- No External Freewheeling Diodes Required
- Due to technical requirements components may contain dangerous substances, component may only be used in life-support devices or systems with the express written approval of Infineon Technologies.

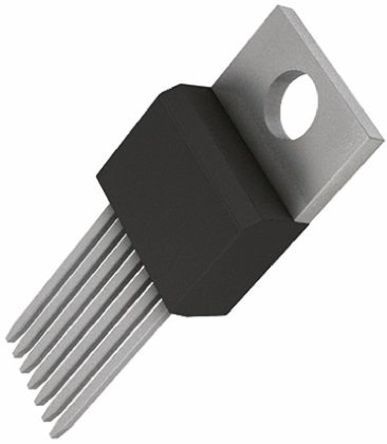

TLE52062SAKSA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 7 Pin |
| Case/Package | TO-220 |
| Number of Outputs | 1 Output |
| Output Current | 5 A |
| Number of Positions | 7 Position |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 40 V |
| Supply Voltage (Min) | 6 V |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 15.65 mm |
| Size-Height | 4.4 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
