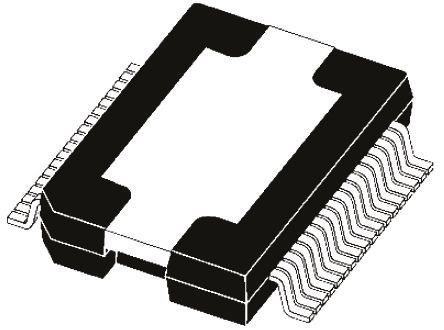

TLE6230GP - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC48320637
Category:
Power Management IC
Package:
P-DSO-36
Datasheet:
Datasheet 3D Model
Description:
Buffer/Inverter Based Peripheral Driver, 8 Driver, 1.5A, MOS, PDSO36, GREEN, PLASTIC, SOP-36
Stock Locations:
Availability:
290 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.4

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Short Circuit Protection * Over temperature Protection * Overvoltage Protection * 16 bit Serial Data Input and Diagnostic Output (2 bit/ch. acc. SPI protocol) * Direct Parallel Control of Four Channels for PWM Applications * Parallel Inputs High or Low Active Programmable * General Fault Flag * Low Quiescent Current * Compatible with 3,3 V Micro Controllers * Electrostatic Discharge (ESD) Protection * Green Product (RoHS compliant) * AEC Qualified

Show

TLE6230GP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	36 Pin
Case/Package	P-DSO-36
Supply Voltage (DC)	4.50V (min)
Number of Outputs	8 Output
Output Current	500 mA
Number of Positions	36 Position
Power Dissipation	3.3 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	15.9 mm
Size-Width	11 mm
Size-Height	3.25 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
