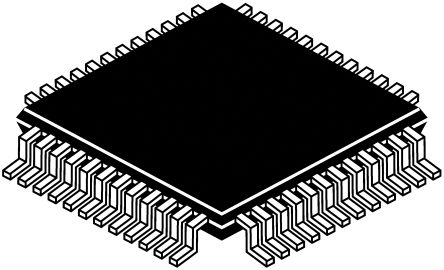

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TLV320AIC24KIPFB is a low-power stereo Voice-band Codec features two 16-bit analog-to-digital (A/D) channels and two 16-bit digital-to-analog (D/A) channels, which can be connected to a handset, headset, speaker, microphone, or a subscriber line via a programmable analog crosspoint. The TLV320AIC2x provides high resolution signal conversion from digital-to-analog (D/A) and from analog-to-digital (A/D) using oversampling sigma-delta technology with programmable sampling rate. It also provides a flexible host port. The host port interface is a two-wire serial interface that can be programmed to be either an industrial standard I²C or a simple S²C (start-stop communication protocol). The codec integrates all of the critical functions needed for most voice-band applications including MIC preamplifier, handset amplifier headset amplifier, 8R speaker driver, side tone control, antialiasing filter, input/output programmable gain amplifier (PGA) and selectable low-pass IIR/FIR filters.
- Glueless 4-wire interface to DSP
- Automatic cascade detection (ACD) self-generates master/slave device addresses
- Programming mode to allow on-the-fly reconfiguration
- Continuous data transfer mode to minimize bit clock speed
- Support different sampling rate for each device
- 2-wire Interface
- Differential and single-ended analog input/output
- Built in analog and digital sidetone
- Built in antialiasing filter (AAF)
- Programmable input and output gain control (PGA)
- Microphone/handset/headset amplifiers
- Green product and no Sb/Br
- Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
TLV320AIC24KIPFB Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | TQFP-48 |
| Number of Channels | 2 Channel |
| Number of Positions | 48 Position |
| Number of Bits | 16 Bit |
| Sample Rate | 26 KSPS |
| Power Consumption | 20.0 mW |
| Number of ADCs | 2 ADC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of Input Channels | 5 Channel |
| Number of Output Channels | 3 Channel |
| Number of DACs | 2 DAC |
| Supply Voltage (Max) | 3.6V, 1.95V |
| Supply Voltage (Min) | 2.7V, 1.65V |
| Show | |
| Size-Length | 7 mm |
| Size-Width | 7 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
