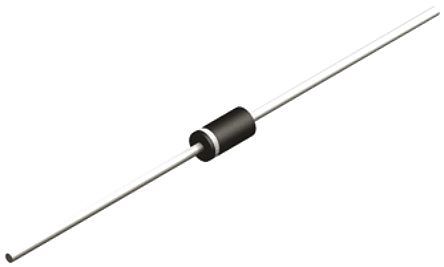

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 1N4007 is a Rectifier Diode for general purposes.
- Low Forward Voltage Drop
- High Surge Current Capability
- 1.1V at 1A forward voltage
1N4007 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DO-41 |
| Voltage Rating (DC) | 1.00 kV |
| Current Rating | 1.00 A |
| Capacitance | 15 pF |
| Power Rating | 3 W |
| Output Current | ≤1.00 A |
| Load Current | 1 A |
| Forward Voltage | 1.1V @1A |
| Polarity | Standard |
| Power Dissipation | 3 W |
| Thermal Resistance | 50℃/W (RθJA) |
| Forward Current | 1 A |
| Max Forward Surge Current (Ifsm) | 30 A |
| Maximum Forward Voltage (Max) | 1.1 V |
| Forward Current (Max) | 1 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Length | 5.2 mm |
| Size-Width | 2.72 mm |
| Size-Height | 5.2 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
