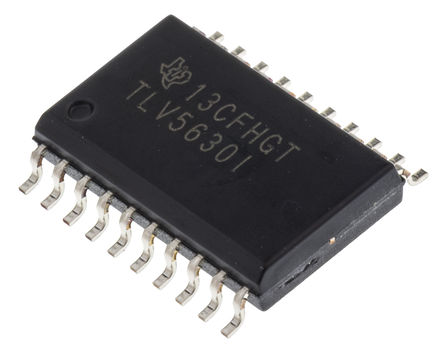

Image is for your reference only,please check specifications for details
- TLV5630IDW - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC6088066
-
Category:Digital to Analog, DAC IC
-
Package:SOIC-20
-
Datasheet:Datasheet 3D Model
-
Description:Digital to Analogue Converter, 12Bit, 283KSPS, Serial, 2.7V to 5.5V, SOIC, 20Pins
-
Stock Locations:
-
Availability:111 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 30.07
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TLV5630IDW is a pin-compatible 8-channel 12-bit voltage output Digital-to-analog Converter (DAC) each with a flexible serial interface. The serial interface allows glueless interface to TMS320 and SPI, QSPI and MICROWIRE serial ports. It is programmed with a 16-bit serial string containing 4 control and 12 data bits. Additional features are a power-down mode, an LDAC input for simultaneous update of all eight DAC outputs and a data output which can be used to cascade multiple devices and an internal programmable band-gap reference. The resistor string output voltage is buffered by a rail-to-rail output amplifier with a programmable settling time to allow the designer to optimize speed vs power dissipation. The buffered, high-impedance reference input can be connected to the supply voltage. Implemented with a CMOS process, the DAC is designed for single-supply operation from 2.7 to 5.5V and can operate on two separate analog and digital power supplies.
- Compatible with TMS320 and SPI serial ports
- Monotonic over temperature
- Low power consumption
- Power-down mode
- Internal reference
- Data output for daisy-chaining
- Green product and no Sb/Br
TLV5630IDW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | SOIC-20 |
| Supply Voltage (DC) | 7.00 V |
| Number of Outputs | 8 Output |
| Output Voltage | 300 mV |
| Supply Current | 16.0 mA |
| Number of Channels | 8 Channel |
| Number of Positions | 20 Position |
| Number of Bits | 12 Bit |
| Sample Rate | 283 ksps |
| Power Consumption | 18.0 mW |
| Thermal Shutdown | No |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of DACs | 8 DAC |
| Supply Voltage | 2.7V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 12.8 mm |
| Size-Width | 7.52 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HK STC License | NLR |
