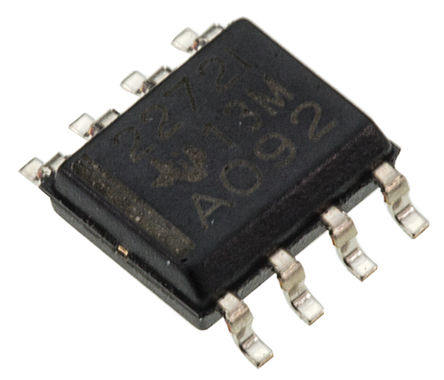

- General Purpose Amplifier 2 Circuit Rail-to-Rail 8-SOIC
TLC2272IDR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Operating Voltage | 4.4V ~ 16V |
| Output Current | ≤50 mA |
| Supply Current | 2.4 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 70 dB |
| Input Offset Drift | 2.00 µV/K |
| Bandwidth | 2.25 MHz |
| Slew Rate | 3.60 V/μs |
| Gain Bandwidth Product | 2.18 MHz |
| Thermal Shutdown | No |
| Input Offset Voltage | 300 µV |
| Input Bias Current | 1 pA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 2.18 MHz |
| Minimum CMRR Range | 70 dB |
| Supply Voltage | 4.4V ~ 16V |
| Show | |
| Size-Length | 4.9 mm |
| Size-Width | 3.91 mm |
| Size-Height | 1.58 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
