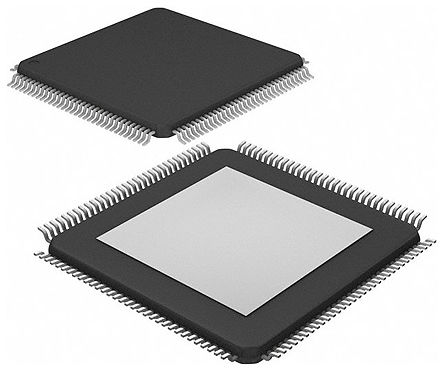

Image is for your reference only,please check specifications for details

TM4C1292NCPDTI3 - TI
Manufacturer:
TI
ManyChip's Part#:
MC17035183
Category:
Microcontroller, MCU IC
Package:
TQFP-128
Datasheet:
Datasheet 3D Model
Description:
MCU 32Bit Tiva C ARM Cortex M4F RISC 1024KB Flash 1.2V/3.3V 128Pin TQFP
Stock Locations:
Availability:
1,159 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 447.1

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Tiva™ C Series microcontrollers integrate a large variety of rich communication features to enable a new class of highly connected designs with the ability to allow critical, real-time control between performance and power. The microcontrollers feature integrated communication peripherals along with other high-performance analog and digital functions to offer a strong foundation for many different target uses, spanning from human machine interface to networked system management controllers.
In addition, Tiva™ C Series microcontrollers offer the advantages of ARM"s widely available development tools, System-on-Chip (SoC) infrastructure, and a large user community. Additionally, these microcontrollers use ARM"s Thumb®-compatible Thumb-2 instruction set to reduce memory requirements and, thereby, cost. Finally, the TM4C1292NCPDT microcontroller is code-compatible to all members of the extensive Tiva™ C Series, providing flexibility to fit precise needs.
Texas Instruments offers a complete solution to get to market quickly, with evaluation and development boards, white papers and application notes, an easy-to-use peripheral driver library, and a strong support, sales, and distributor network.

Show

TM4C1292NCPDTI3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	128 Pin
Case/Package	TQFP-128
Frequency	120 MHz
Number of Positions	128 Position
Clock Speed	120 MHz, 120 MHz (max)
RAM Memory Size	256 KB
Number of Bits	12 Bit
Power Dissipation	904 mW
FLASH Memory Size	1048576 B
Number of UARTs	8 UART
Number of ADCs	2 ADC
Number of Inputs and Outputs	98 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	904 mW
Supply Voltage (Max)	3.63 V
Supply Voltage (Min)	2.97 V
	Show
Size-Length	14.05 mm
Size-Width	14.05 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
