TMDSHVRESLLCKIT - TI
Manufacturer:
TI
ManyChip's Part#:
MC15426663
Category:
Microprocessor Primary Platform
Datasheet:
Datasheet 3D Model
Description:
Development Kit, High Voltage Resonant LLC Converter Control Card, Onboard JTAG Emulator
Stock Locations:
Availability:
8 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 437.06

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

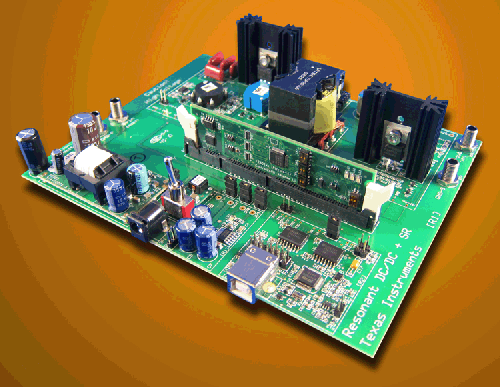

TMDSHVRESLLCKIT is a C2000 high voltage resonant LLC developer"s kit, designed to show users how to quickly implement a digitally controlled resonant LLC topology DC/DC converter. This is a high voltage kit intended to support voltage levels that are commonly used in end equipment designs and gives designers the opportunity to experiment with multiple control methods. This kit is an excellent companion to the primary side TMDSHVBLPFCKIT and TMDSHVPFCKITs providing a complete evaluation platform for power factor corrected AC input stages to a high efficiency DC/DC output stage. The evaluation module also features on board USB JTAG emulation, requiring no external JTAG emulator. The evaluation module is based on the control CARD platform, includes an F28027 control CARD and a quick start experimenters GUI. Also included with the kit is controlSUITE, as well as a 32KB limited version of CCS V4 and full hardware and software documentation.
High voltage resonant LLC converter control CARD based EVM
Quick start graphical user interface
380V to 400V DC input, 500W 12V regulated DC output
Supports synchronous rectification output control
Four different feedback methods for experimentation
Lossless current sensing circuit for fault protection
On board USB JTAG emulation
Open source hardware and software with full documentation
Detailed lab and discussion of Resonant LLC Principles
