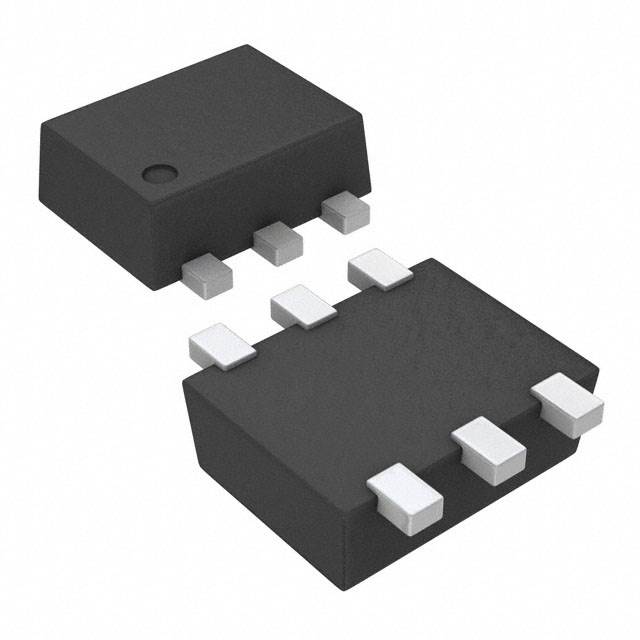

Image is for your reference only,please check specifications for details
- TMP302BDRLR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC18990466
-
Category:Temperature Sensor
-
Package:SOT-553-6
-
Datasheet:Datasheet 3D Model
-
Description:Pin-Selectable Trip Point 1.4V-Capable Family of Temperature Switches 6-SOT -40℃ to 125℃
-
Stock Locations:
-
Availability:264 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.59
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This TMP302BDRLR temperature and humidity sensor developed by Texas Instruments will double up ambient condition reader into one sensor. It has a digital output. This device has a minimum operating supply voltage of 1.4 V and a maximum of 3.6 V. This part has a minimum operating temperature of -55 °C and a maximum of 130 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.
TMP302BDRLR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SOT-553-6 |
| Output Current | 10 mA |
| Supply Current | 8 µA |
| Quiescent Current | 8.00 µA |
| Output Current (Max) | 10 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±0.2 ℃ |
| Supply Voltage | 1.4V ~ 3.6V |
| Supply Voltage (Max) | 3.6 VDC |
| Supply Voltage (Min) | 1.4 VDC |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
Order guide
-
TT in advance (bank transfer), Western Union, Credit card,
PayPal. Customer is responsible for shipping fee, bank
charges, duties and taxes.
-
- You can choose whether shipping charges will be charged through your shipping account or by us.
- Please confirm with the logistics company in advance for remote areas.
(Additional charges ($35-$50) may apply for delivery in these areas)
- Delivery date: usually 2 to 7 working days.
- A tracking number will be sent after your order ships.
- - Carefully inspected and packed by ManyChip warehouse - Vacuum packaging - Anti-static packaging - Shockproof foam
- The terms here are for reference only, the actual terms are subject to the sales quotation. - Please confirm product specifications when ordering. - MOQ refers to the minimum order quantity required to purchase each part. - If you have special ordering instructions, please indicate them on the ordering page. - Inspection (PSI) will be performed prior to shipment.
- - Income Quality Control (IQC), 1000+ qualified dealers. - Chips are tested by authoritative organizations to ensure the quality, authenticity and safety of your device. - Decapsulation control - X-ray control - XRF inspection - Electrical testing - Surface testing -Digital components warehouse, covering an area of 800 square meters, with constant temperature and humidity
