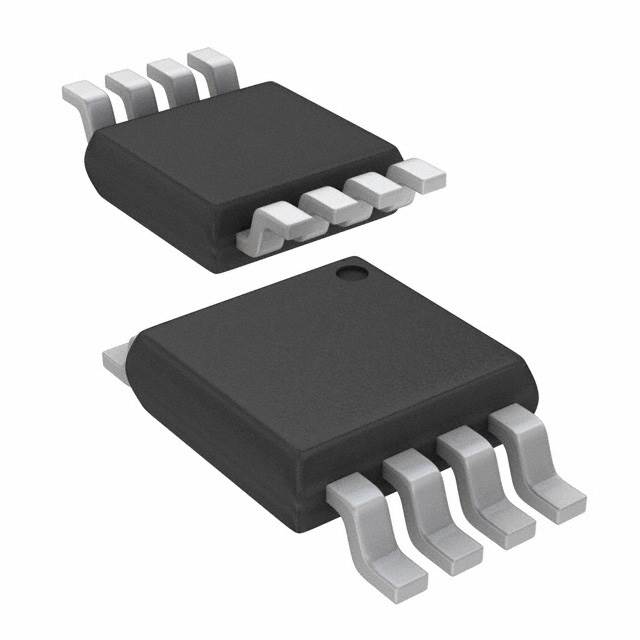

Image is for your reference only,please check specifications for details
- TMP75AQDGKRQ1 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC8174127
-
Category:Temperature Sensor
-
Package:VSSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:Automotive Temp Sensor with I2C/SMBus Interface in Industry Standard LM75 Form Factor & Pinout 8-VSSOP -40℃ to 125℃
-
Stock Locations:
-
Availability:244 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.49
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The TMP75-Q1 and TMP175-Q1 devices are digital temperature sensors ideal for negative temperature coefficient (NTC) and positive temperature coefficient (PTC) thermistor replacement. The devices offer a typical accuracy of ±1°C without requiring calibration or external component signal conditioning. Device temperature sensors are highly linear and do not require complex calculations or look-up tables to derive the temperature. The on-chip, 12-bit, analog-to-digital converter (ADC) offers resolutions down to 0.0625°C. The devices are available in the industry-standard, LM75, 8-pin SOIC and VSSOP footprint
- Features
- • AEC-Q100 Qualified with:
- – Temperature Grade 1: –40°C to +125°C Ambient Operation Temperature Range
- – HBM ESD Classification Level 2
- – CDM ESD Classification Level C6
- • TMP175-Q1 Accuracy:
- – ±1°C (Typical) from –40°C to +125°C
- – ±2°C (Maximum) from –40°C to +125°C
- • TMP75-Q1 Accuracy:
- – ±1°C (Typical) from –40°C to +125°C
- – ±3°C (Maximum) from –40°C to +125°C
- • TMP175-Q1: 27 Addresses
- • TMP75-Q1: 8 Addresses, NIST Traceable
- • Digital Output: SMBus™, Two-Wire, and I2C Interface Compatibility
- • Resolution: 9 to 12 Bits, User-Selectable
- • Low Quiescent Current: 50-μA, 0.1-μA Standby
- • Wide Supply Range: 2.7 V to 5.5 V
- • Small 8-Pin VSSOP and 8-Pin SOIC Packages
- Applications
- • Climate Controls
- • Infotainment Processor Management
- • Airflow Sensors
- • Battery Control Units
- • Engine Control Units
- • UREA Sensors
- • Water Pumps
- • HID Lamps
- • Airbag Control Units
TMP75AQDGKRQ1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSSOP-8 |
| Quiescent Current | 50.0 µA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±1 ℃ |
| Supply Voltage | 2.7V ~ 5.5V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
