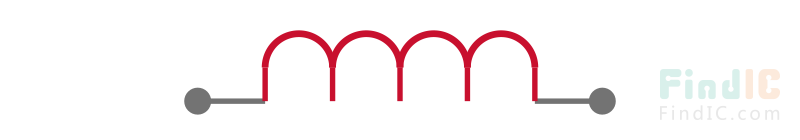

Image is for your reference only,please check specifications for details

IHLP2525EZER100M01 - VISHAY
Manufacturer:
VISHAY
ManyChip's Part#:
MC46442707
Category:
Inductor Surface Mount
Package:
2525
Datasheet:
Datasheet 3D Model
Description:
Inductor Power Shielded Wirewound 10uH 20% 100kHz Powdered Iron 4.5A 71.3mOhm DCR 2525 T/R
Stock Locations:
Availability:
9,048 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.5

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IHLP-2525EZ-01 series IHLP® low-profile High-current Inductor with shielded construction. It is suitable for use in high-current POL converters, DC/DC converters in distributed power systems and DC/DC converter for field programmable gate array (FPGA).
Frequency range up to 1MHz
Lowest DCR/µH, in this package size
Powdered iron composition provides soft saturation
Handles high transient current spikes without saturation
Saturation and inductance extremely stable over temperature
Ultra low buzz noise, due to composite construction
Halogen-free, Green product
-55 to 125°C Operating temperature range

Show

IHLP2525EZER100M01 Specifications
