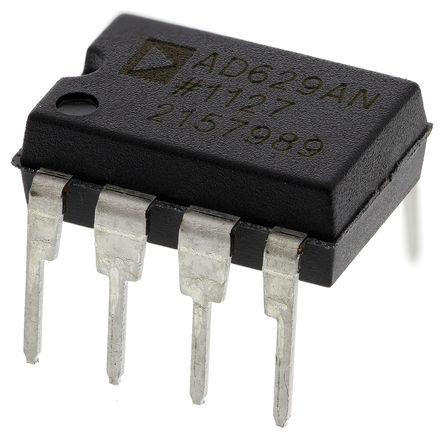

Image is for your reference only,please check specifications for details

AD629ANZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC137967
Category:
Operational Amplifier, OP Amp IC
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD629ANZ Differential Amplifier, High Common-Mode Voltage, 1 Amplifiers, 1mV, 1dB, 500kHz, -40℃, 85℃
Stock Locations:
Availability:
266 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.72

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD629ANZ is a Difference Amplifier with a very high input, common-mode voltage range. It is a precision device that allows the user to accurately measure differential signals in the presence of high common-mode voltages up to ±270V. The AD629 can replace costly isolation amplifiers in applications that do not require galvanic isolation. The device operates over a ±270V common-mode voltage range and has inputs that are protected from common-mode or differential mode transients up to ±500V. The AD629 has low offset, low offset drift, low gain error drift, low common-mode rejection drift and excellent CMRR over a wide frequency range.
High accuracy DC performance
Excellent AC performance
Indefinite output short-circuit duration
Input protection to ±500V common and differential mode
±270V Common-mode voltage range
150°C Maximum junction temperature

Show

AD629ANZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	15.0 V
Supply Current	900 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	77 dB
Bandwidth	500 kHz
Slew Rate	2.10 V/μs
Gain Bandwidth Product	500 kHz
Input Offset Voltage	1 mV
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	500 kHz
Minimum CMRR Range	77 dB
Supply Voltage (Max)	30V ~ 50V
	Show
Size-Length	9.27 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
