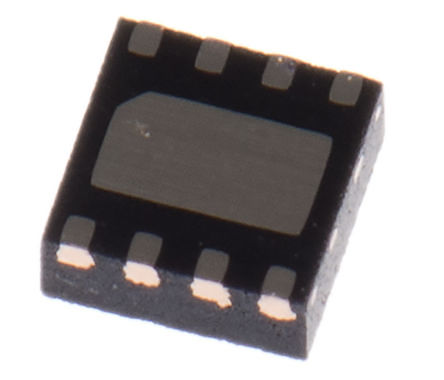

TPA2006D1DRBT - TI
Manufacturer:
TI
ManyChip's Part#:
MC19472793
Category:
Audio Amplifier IC
Package:
VDFN-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPA2006D1DRBT Audio Power Amplifier, D, 1Channel, 1.45W, 2.5V to 5.5V, SON, 8Pins
Stock Locations:
Availability:
236 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.6

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPA2006D1DRBT is a 1.45W high efficiency filter-free mono Class D Audio Amplifier with 1.8V compatible shutdown voltage. The shutdown pin is fully compatible with 1.8V logic GPIO, such as are used on low-power cellular chipsets. Features like 88% efficiency, -75dB PSRR, improved RF-rectification immunity and small total PCB footprint make the TPA2006D1 device ideal for cellular handsets. A fast start-up time of 1ms with minimal pop makes the TPA2006D1 device ideal for PDA applications. In cellular handsets, the earpiece, speaker phone and melody ringer can each be driven by the TPA2006D1 device. The TPA2006D1 device allows independent gain while summing signals from separate sources and has a low 36µV noise floor, A-weighted. The TPA2006D1 device has short-circuit and thermal protection.
Maximum battery life and minimum heat
Optimized PWM output stage eliminates LC output filter
Internally generated 250kHz switching frequency eliminates capacitor and resistor
Fully differential design reduces RF rectification and eliminates bypass capacitor
Improved CMRR eliminates two input coupling capacitors
2.8mA Quiescent current
0.5µA Shutdown current
75dB PSRR
Green product and no Sb/Br

Show

TPA2006D1DRBT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VDFN-8
Supply Voltage (DC)	5.50 V
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	2.7 W
Common Mode Rejection Ratio	68 dB
Quiescent Current	3.40 mA
Output Power	1.45 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2700 mW
Minimum CMRR Range	68 dB
Supply Voltage	2.5V ~ 5.5V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.88 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
