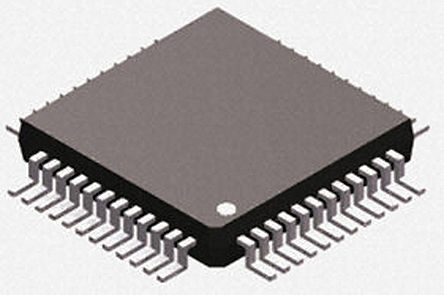

TPA3100D2PHP - TI
Manufacturer:
TI
ManyChip's Part#:
MC31552604
Category:
Audio Amplifier IC
Package:
HTQFP-48
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPA3100D2PHP Audio Power Amplifier, D, 2Channel, 21.8W, 10V to 26V, HTQFP, 48Pins
Stock Locations:
Availability:
92 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.25

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPA3100D2PHP is a 20W efficient class-D Audio Power Amplifier for driving bridged-tied stereo speakers. The TPA3100D2 can drive stereo speakers as low as 4R. The high efficiency of the TPA3100D2, 92%, eliminates the need for an external heat sink when playing music. The gain of the amplifier is controlled by two gain select pins. The gain selections are 20, 26, 32, 36dB. The outputs are fully protected against shorts to GND, VCC and output-to-output shorts with an auto recovery feature and monitor output.
Four selectable and fixed gain settings
Differential inputs
Thermal and short-circuit protection with auto recovery feature
Clock output for synchronization with multiple class-D devices
92% Efficient class-D operation eliminates need for heat sinks
Green product and no Sb/Br

Show

TPA3100D2PHP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	HTQFP-48
Frequency	300 kHz
Supply Voltage (DC)	26.0 V
Input Voltage (DC)	2.00 V
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	48 Position
Power Dissipation	5 W
Output Power	21.8 W
Gain	36 dB
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	5000 mW
Supply Voltage	10V ~ 26V
	Show
Size-Length	7 mm
Size-Width	7 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
