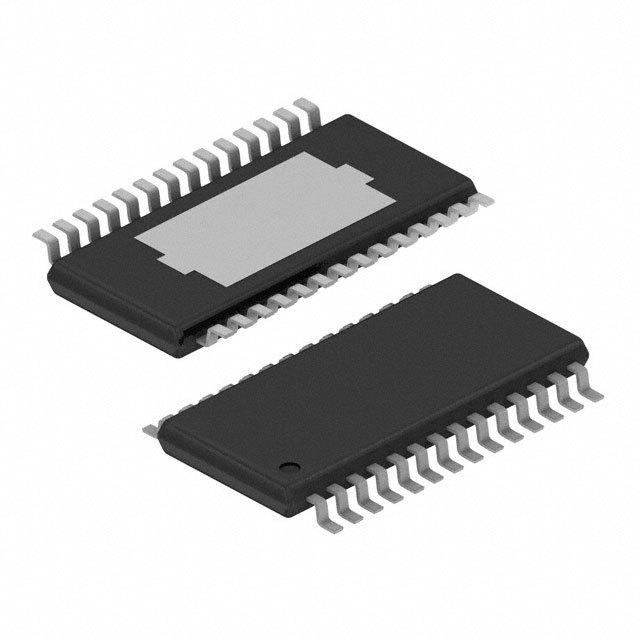

Image is for your reference only,please check specifications for details
- TPA3111D1PWP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC20721763
-
Category:Audio Amplifier IC
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS TPA3111D1PWP Audio Power Amplifier, D, 1Channel, 10W, 8V to 26V, HTSSOP, 28Pins
-
Stock Locations:
-
Availability:250 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.93
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPA3111D1PWP is a 10W Mono Class-D Audio Power Amplifier with SpeakerGuard™ for driving bridged-tied stereo speaker. Advanced EMI suppression technology enables the use of inexpensive ferrite bead filters at the outputs while meeting EMC requirements. SpeakerGuard™ speaker protection system includes an adjustable power limiter and a DC detection circuit. The adjustable power limiter allows the user to set a "virtual" voltage rail lower than the chip supply to limit the amount of current through the speaker. The DC detect circuit measures the frequency and amplitude of the PWM signal and shuts off the output stage if the input capacitors are damaged or shorts exist on the inputs. The TPA3111D1 can drive a mono speaker as low as 4R. The high efficiency >90% eliminates the need for an external heat sink when playing music. The outputs are fully protected against shorts to GND, VCC and output-to-output.
- 10W into an 8R load at 10% THD+N from a 12V supply
- 7W into 4R load at 10% THD+N from a 8V supply
- 94% Efficient class-D operation eliminates need for heat sinks
- Filter-free operation
- SpeakerGuard™ speaker protection includes adjustable power limiter plus DC protection
- Flow through pin out facilitates easy board layout
- Robust pin-to-pin short-circuit protection and thermal protection with auto recovery option
- Excellent THD+N/pop-free performance
- Four selectable, fixed gain settings
- Differential inputs
- Green product and no Sb/Br
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
TPA3111D1PWP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | HTSSOP-28 |
| Number of Channels | 1 Channel |
| Number of Positions | 28 Position |
| Output Power | 10 W |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 8V ~ 26V |
| Supply Voltage (Max) | 26 V |
| Supply Voltage (Min) | 8 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
